How to Set Up JWT Authentication for Oracle Fusion Cloud Applications

This article walks you through the complete JWT (JSON Web Token) authentication setup for Oracle Fusion Cloud Applications.

The setup involves three steps:

1. Generate an X.509 key pair using OpenSSL
2. Configure the API Authentication Provider in Oracle Fusion Security Console
3. Register an OAuth Confidential Application in OCI Identity Domain

Step 1: Generate X.509 Key Pair Using OpenSSL

You need a private key and a public certificate. The private key signs your JWT tokens, while the public certificate gets uploaded to the Oracle Fusion Security Console and the OAuth Confidential Application in Oracle Cloud Infrastructure (OCI) Identity Domain for token verification

We use OpenSSL for this.  It is an open-source toolkit widely used for creating and managing SSL/TLS certificates and encryption keys. Make sure OpenSSL is installed on your system before continuing.

1.1 Create and open a working directory

mkdir oauth-keys

cd oauth-keys

1.2 Generate a 2048-bit RSA private key

openssl genrsa -out private_key.pem 2048

1.3 Generate the public certificate (valid for 365 days)

openssl req -new -x509 -key private_key.pem -out public_cert.pem -days 365

OpenSSL will prompt you to enter certificate details. Fill in your organization information.

At this point, you should have two files:

• private_key.pem — Keep this secret. It signs your JWT tokens.
• public_cert.pem —  Upload to Oracle Fusion Security Console and OCI Identity Domain for verification.

1.4 Generate the certificate fingerprint (x5t)

The fingerprint value (called x5t) goes into the JWT header so Oracle knows which certificate to verify against.

Run the following command to generate the SHA-1 fingerprint:

openssl x509 -sha1 -in public_cert.pem -noout -fingerprint

You will get output like:

SHA1 Fingerprint=74:88:BB:C2:5A:EE:18:8B:38:86:E9:FA:FA:55:D8:70:E4:5D:A9:88

Copy the fingerprint value after the = sign and convert it to Base64 using one of the following commands:

If you are using Command Prompt or PowerShell:

powershell -command "$hex='74:88:BB:C2:5A:EE:18:8B:38:86:E9:FA:FA:55:D8:70:E4:5D:A9:88'.Replace(':',''); $bytes = for ($i=0; $i -lt $hex.Length; $i+=2) {[Convert]::ToByte($hex.Substring($i,2),16)}; [Convert]::ToBase64String($bytes)"

If you are using Git Bash:

echo "74:88:BB:C2:5A:EE:18:8B:38:86:E9:FA:FA:55:D8:70:E4:5D:A9:88" | tr -d ':' | xxd -r -p | base64

Step 2: Configure API Authentication Provider in Oracle Fusion Security Console

This step tells Oracle Fusion to trust tokens signed by your private key.

2.1 Create the Authentication Provider

1. Login to Oracle Fusion as a user with the Security Manager role.
2. Navigate to Navigator → Tools → Security Console.
3. Click API Authentication.
4. Click Create Oracle API Authentication Provider.
5. Click Edit.
6. Set Trusted Issuer to a name that identifies your application.
7. Set Token Type to JWT.
8. Click Save and Close.

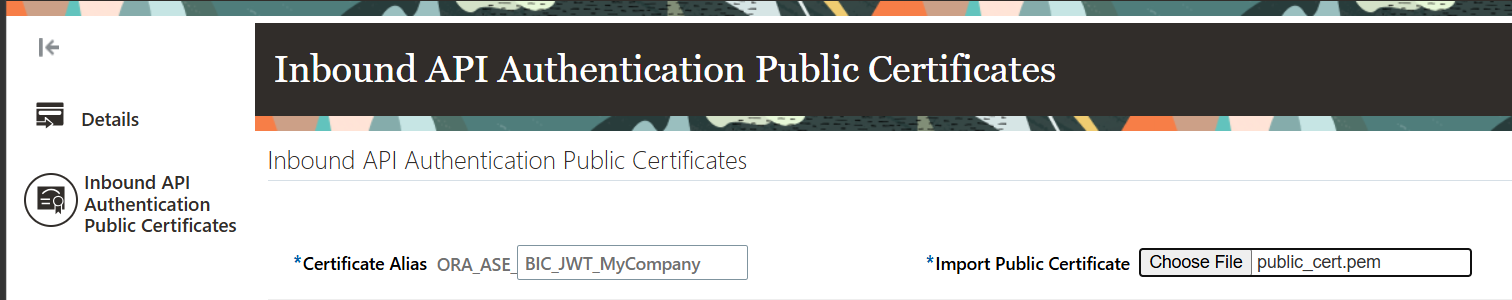

2.2 Upload the Public Certificate

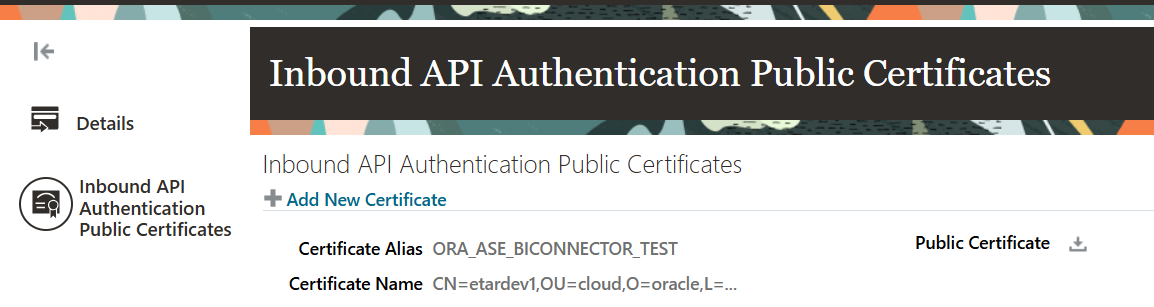

1. From the left-hand menu, select Inbound API Authentication Public Certificates.
2. Click Add.
3. Set Certificate Alias to a friendly name (for example, ORA_ASE_JWT_MYCOMPANY).
4. For Certificate File, browse and select your public_cert.pem.
5. Click Done.

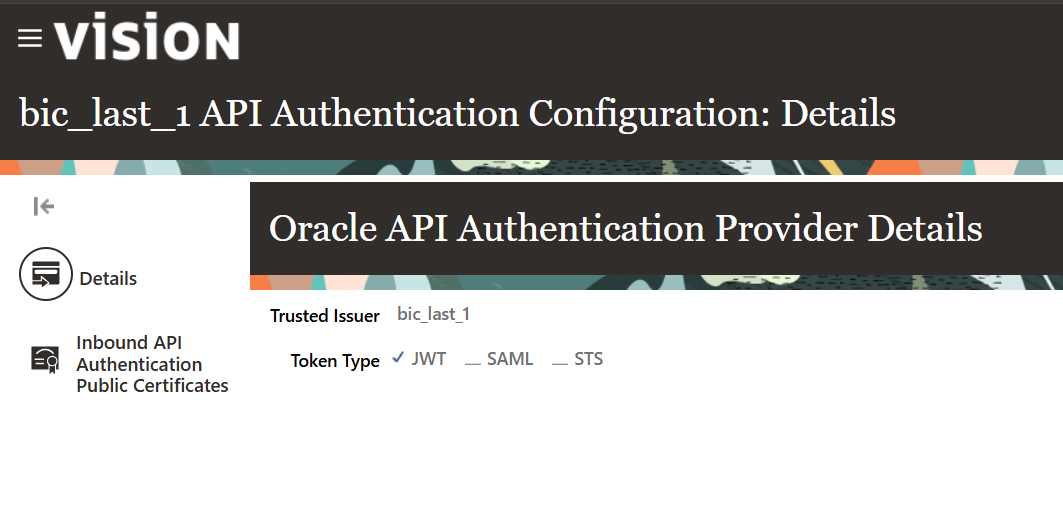

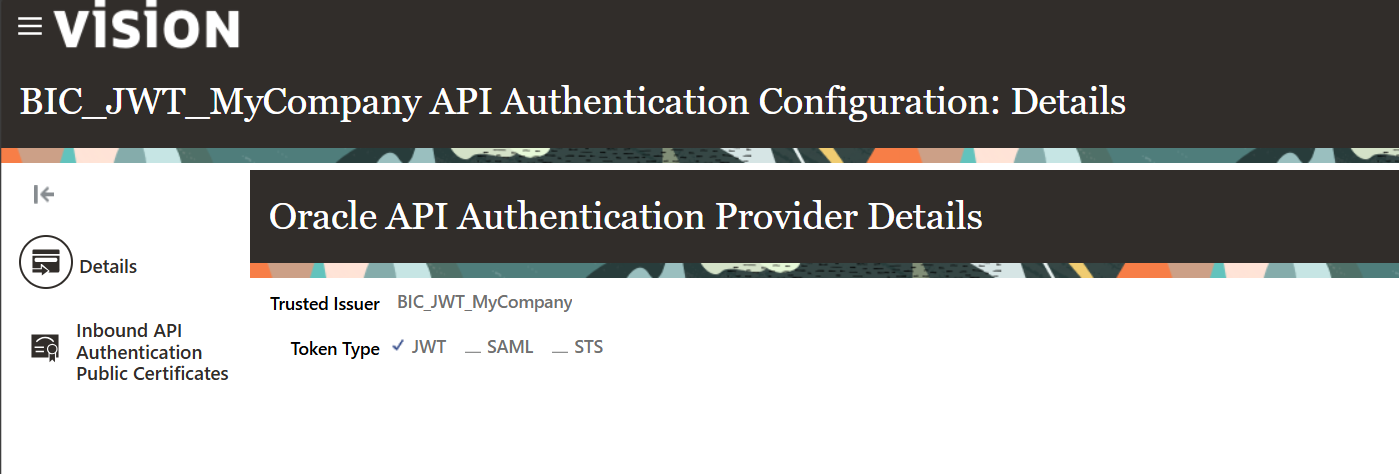

Verify that the Trusted Issuer is listed and Token Type shows JWT.

Step 3: Register OAuth Confidential Application in OCI Identity Domain

In this step, you create the OAuth Confidential Application. After this step, you will have a Client ID, Client Secret, Scope, and Key Alias  for your BI Connector integration.

3.1 Create the Application

1. Login to your OCI Identity Domain with administrator credentials.
2. Navigate to Identity & Security → Domains.

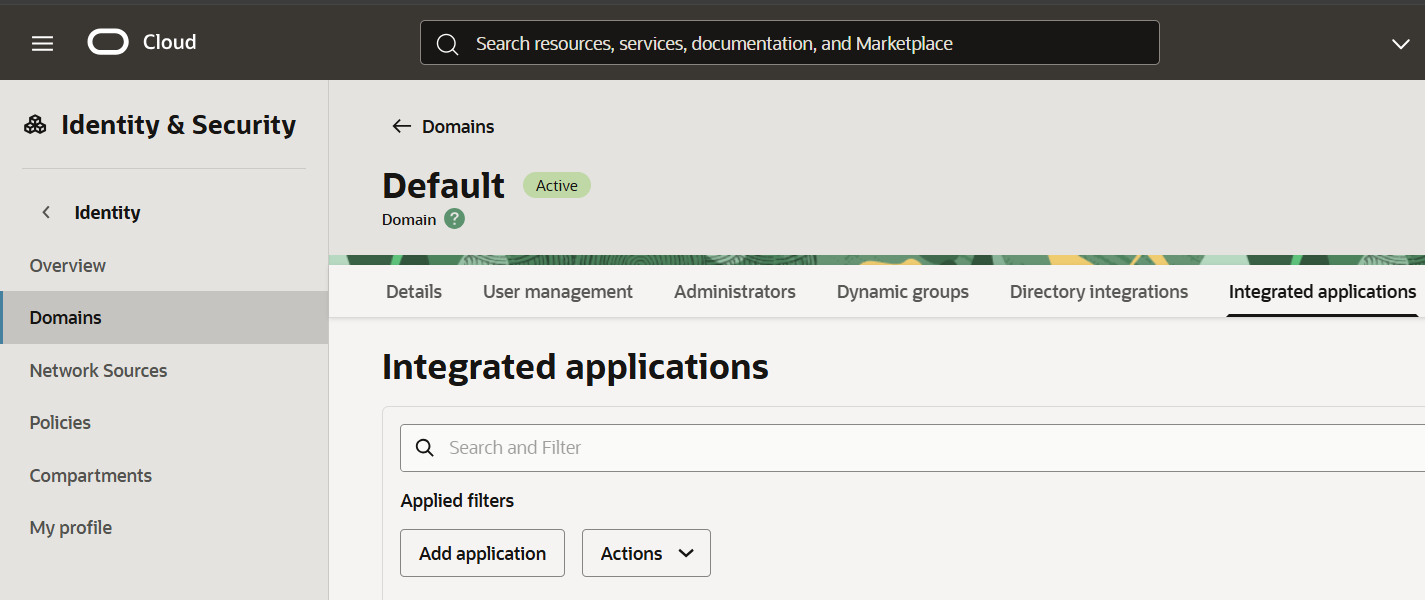

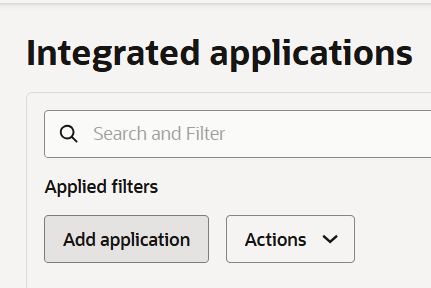

3. Select your identity domain and go to Integrated Applications.
4. Click Add Application.

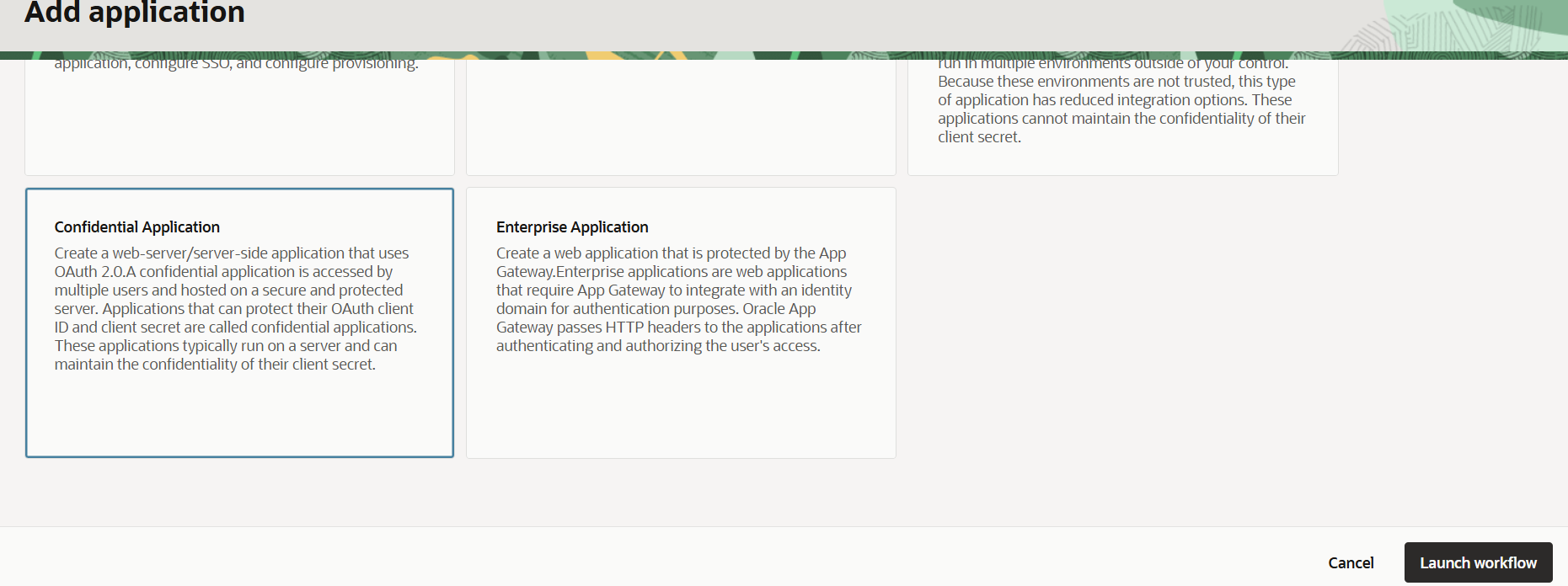

5. Select Confidential Application and click Launch Workflow.

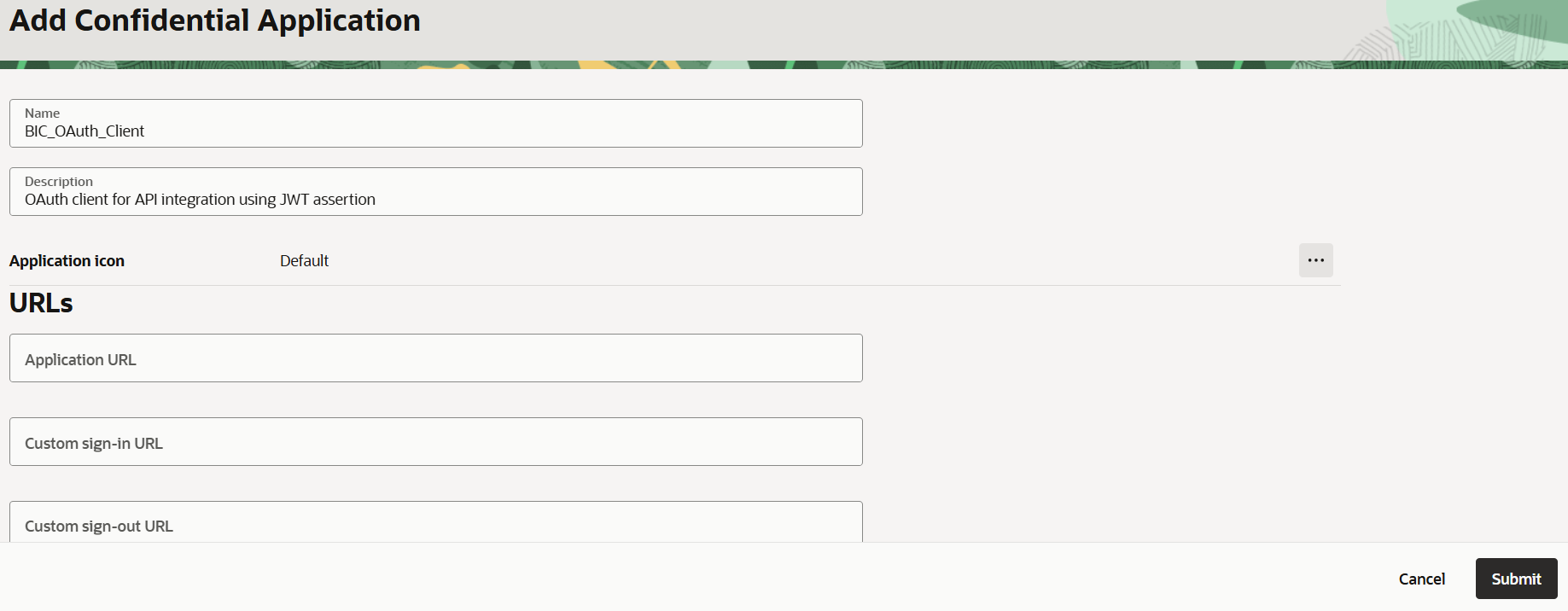

6. Enter a Name (for example, BIC_OAuth_Client).
7. Enter a Description (for example, OAuth client for API integration using JWT assertion).
8. Click Submit.

3.2 Configure OAuth Settings

Go to the OAuth configuration tab and click "Edit OAuth configuration".

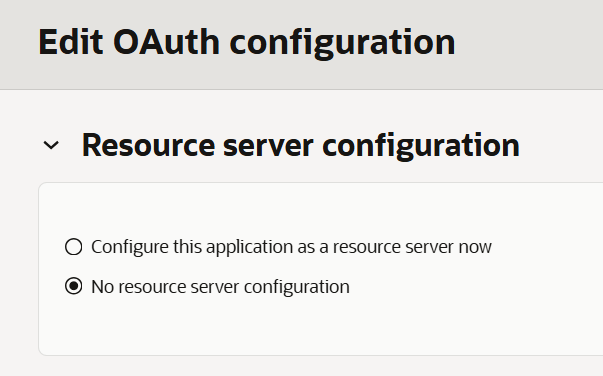

Resource Server Configuration:

• Keep "No Resource Server Configuration" selected.

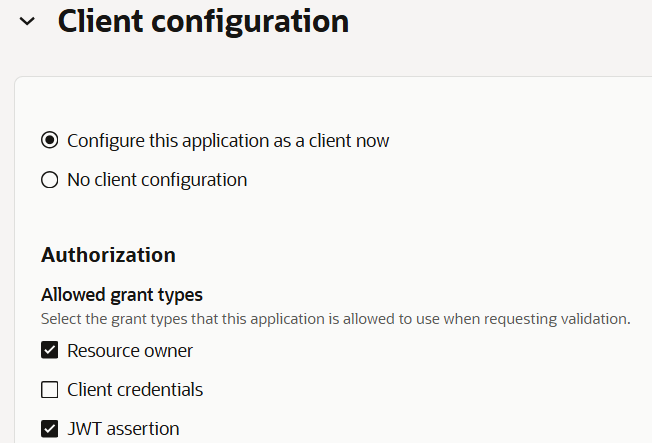

Client Configuration:

1. Select "Configure this application as a client now".
2. Grant Types: Check Resource Owner and JWT Assertion.

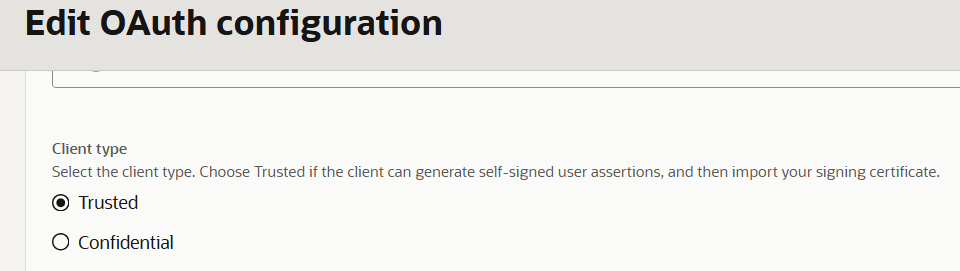

3. Client Type: Select Trusted.

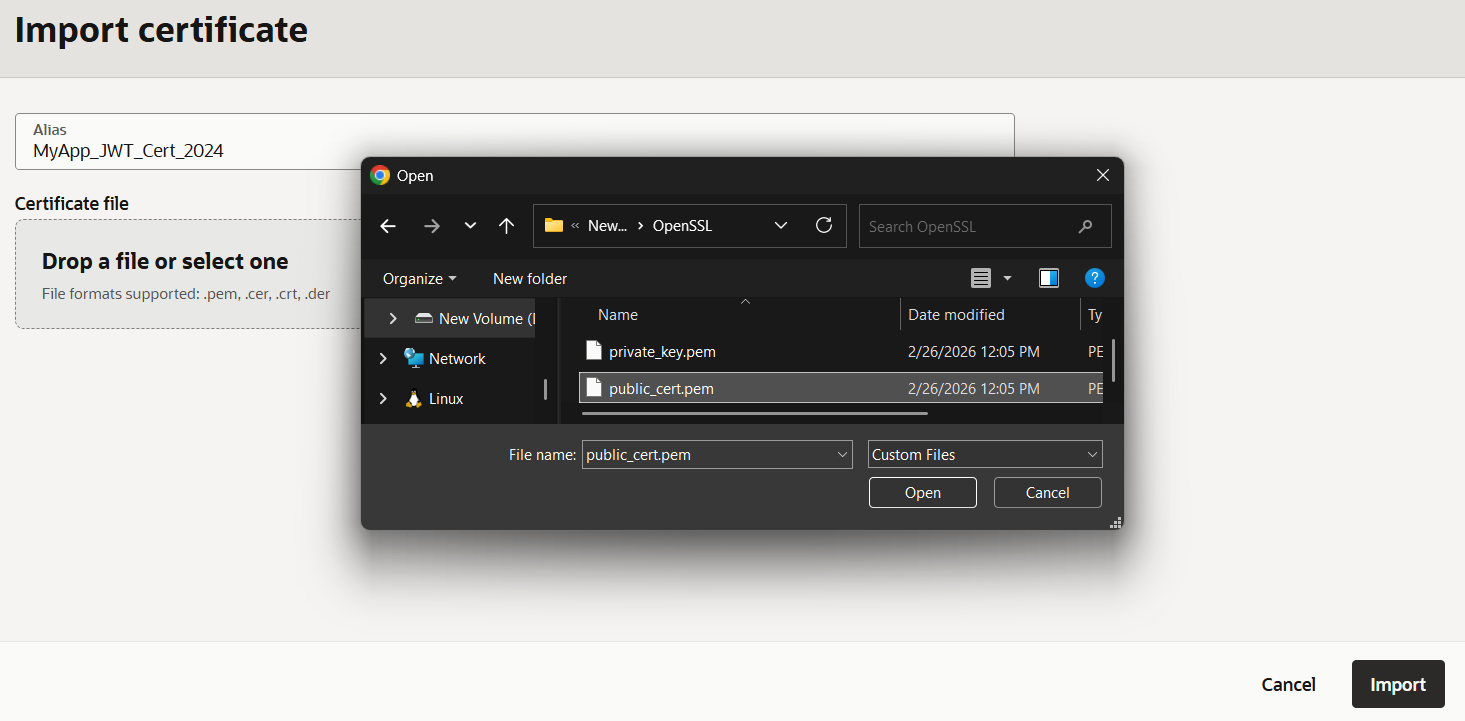

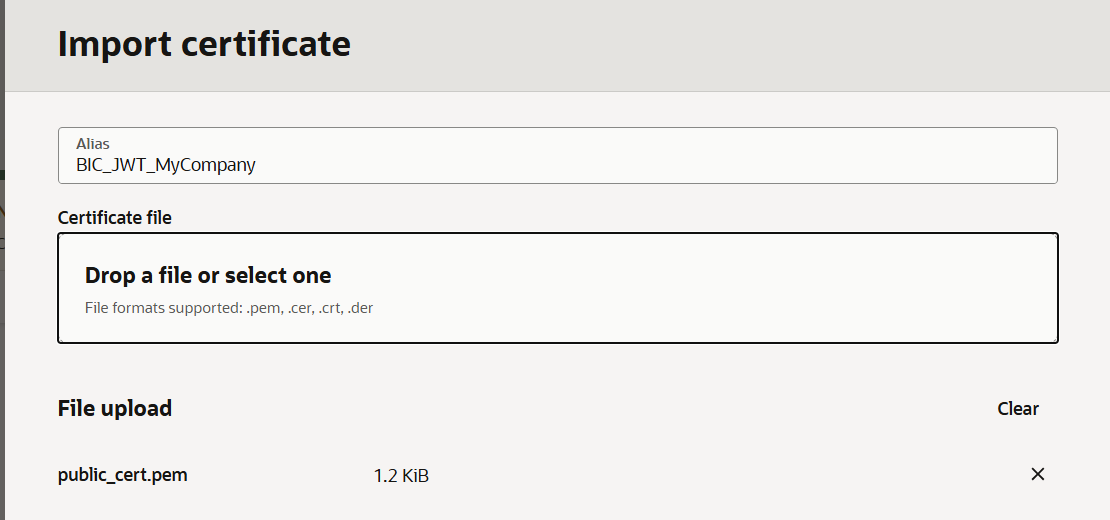

4. Upload Public Certificate: Upload your public_cert.pem and give it an alias (for example, MyApp_JWT_Cert_2024).

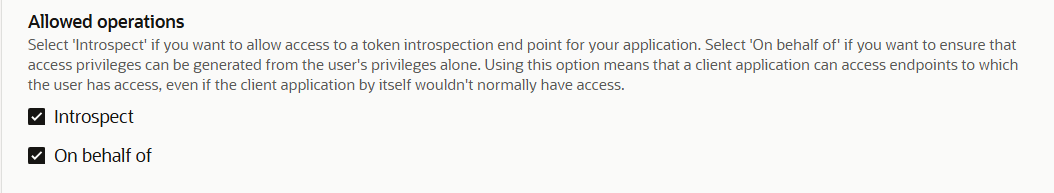

5. Allowed Operations: Check Introspect and On behalf of.

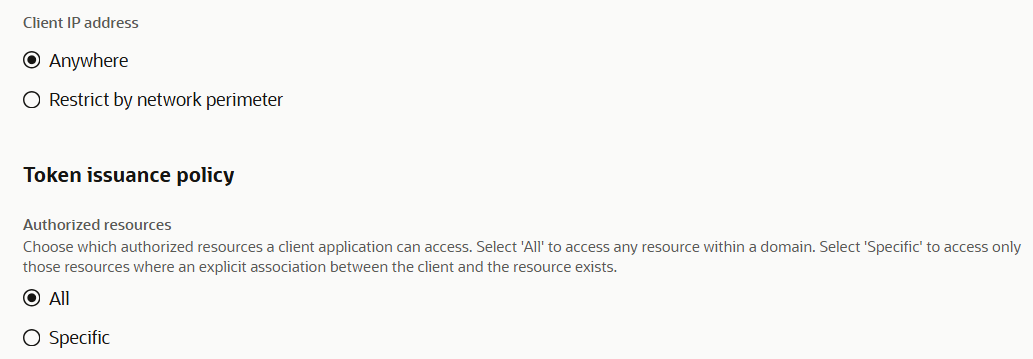

6. Client IP Address: Set to Anywhere.
7. Authorized Resources: Check All.

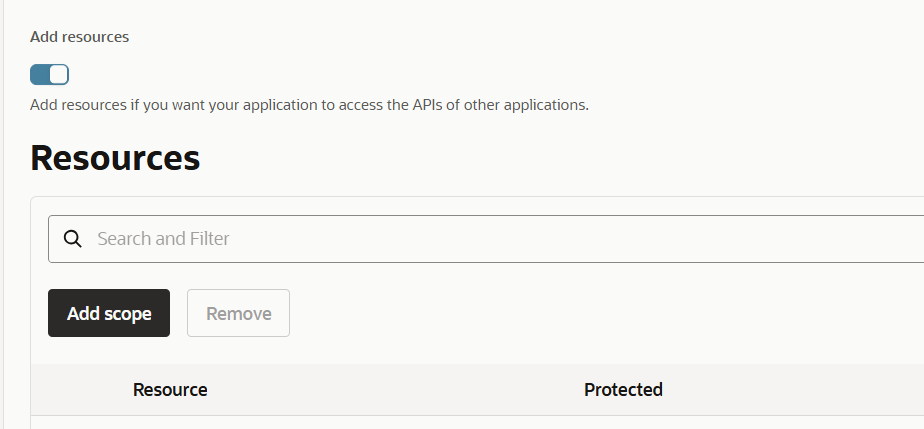

8. Add Resource: Click the Add Scope button and add the required scope (for example, urn:opc:resource:consumer::all).

3.3 Submit and Copy Credentials

1. Click Submit.
2. The Client ID, Client Secret, and other configuration details will now be visible on the OAuth configuration page.
3. Copy and save them securely.

Credentials Summary

After completing all three steps, securely store the following values. You will need them when configuring BI Connector:
